AWS Serverless Application Model (SAM)

Basics of SAM

SAM is all about automation and in theory no need to go to AWS console. SAM uses a CLI and simplified templates which are extension of CloudFormation templates (basically a yaml file). It supports Lambda, API Gateway, DynamoDB, and S3, and event like StepFunctions, SNS, SQS, etc.

We’ll create a Hello World example. First install it: pip install aws-sam-cli. We run sam init and chose hello-world options.

The template is in template.yaml and the only required fields are transform and resources.

We then build and deploy the application.

cd sam-app && sam build   # default name is sam-app
sam deploy --stack-name clab-stack --s3-bucket <TEMPLATE-BUCKET-NAME> --capabilities CAPABILITY_IAM   # s3-bucket is optional, capabilities are for CloudFormation to create IAM role

This will build CloudFormation stack, API Gateway, Lambda, and IAM role, and create some files in S3 bucket. Lambda is a Node.js function triggered by API Gateway.

Full stack web application

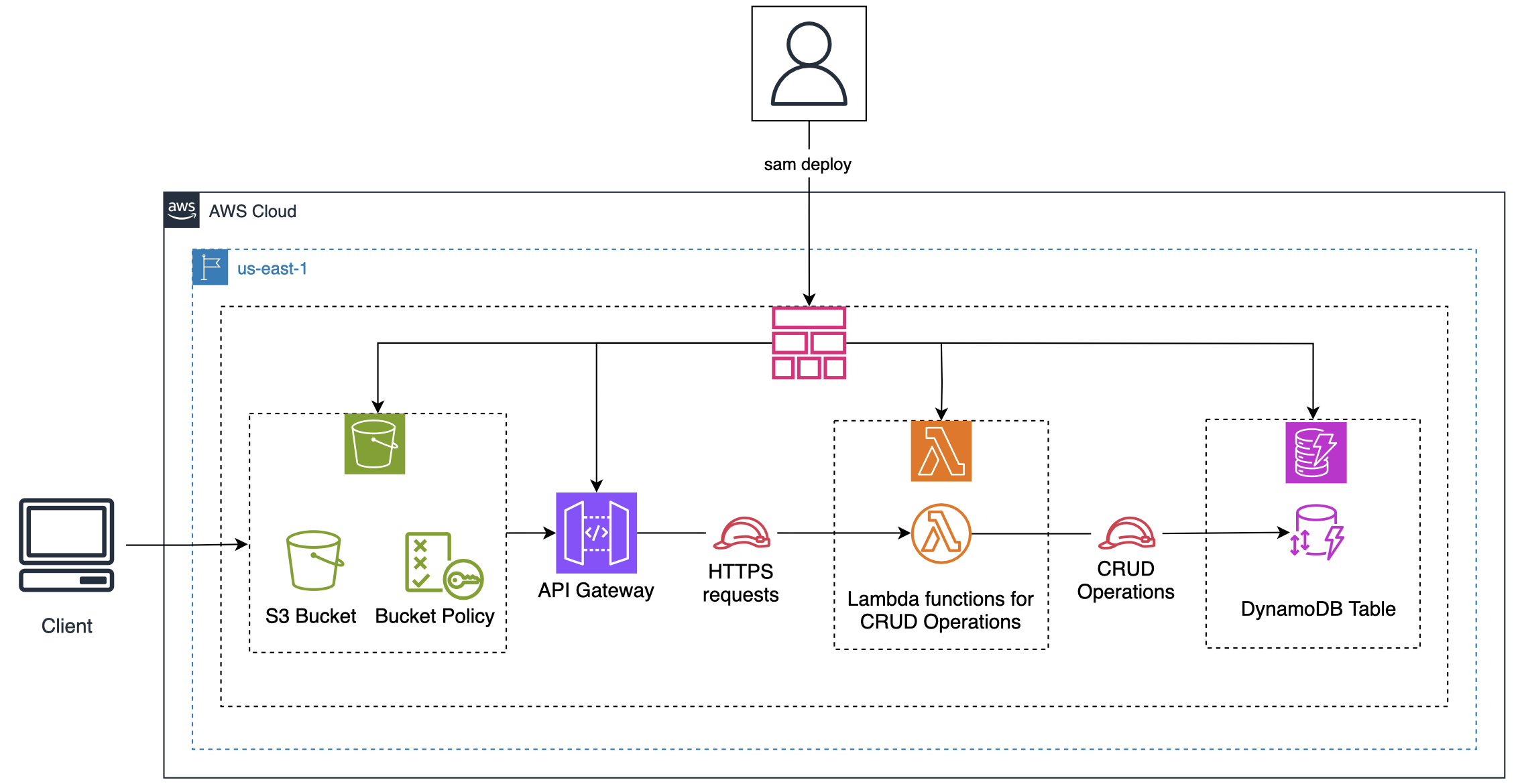

Now we build a full stack web app, we’ll have template that will create a DynamoDB table, then Lambdas which will be APIs called by API Gateway.

DynamoDB table

We use AWS::Serverless::SimpleTable resource to create DynamoDB table.

template.yaml file

AWSTemplateFormatVersion: '2010-09-09'
Transform: AWS::Serverless-2016-10-31
Description: >
 Infrastructure for CLAB "Building and Deploying Serverless Applications using SAM"
Resources:
  CourseTable:
    Type: AWS::Serverless::SimpleTable
    Properties:
      TableName: Courses
      PrimaryKey:
        Name: ID
        Type: Number
Outputs:
  DynamoDBTableName:
    Description: "DynamoDB Table Name"
    Value: !Ref CourseTable

let’s add a few items:

aws dynamodb batch-write-item --request-items '{
  "Courses": [
    {"PutRequest": {"Item": {"ID": {"N": "1"}, "CourseName": {"S": "The Detailed Workings of AWS S3"}, "CourseURL": {"S": "https://www.educative.io/courses/detailed-workings-aws-s3"}, "ImageURL": {"S": "https://www.educative.io/cdn-cgi/image/format=auto,width=950,quality=75/v2api/collection/10370001/6071752037236736/image/6458556865314816"}}}},
    {"PutRequest": {"Item": {"ID": {"N": "2"}, "CourseName": {"S": "The Good Parts of AWS: Cutting Through the Clutter"}, "CourseURL": {"S": "https://www.educative.io/courses/good-parts-of-aws"}, "ImageURL": {"S": "https://www.educative.io/cdn-cgi/image/format=auto,width=950,quality=75/v2api/collection/10370001/5943367834796032/image/4534786195456000"}}}},
    {"PutRequest": {"Item": {"ID": {"N": "3"}, "CourseName": {"S": "Create an EKS Cluster and Deploy an Application"}, "CourseURL": {"S": "https://www.educative.io/cloudlabs/create-an-eks-cluster-and-deploy-an-application"}, "ImageURL": {"S": "https://www.educative.io/cdn-cgi/image/format=auto,width=750,quality=75/v2api/collection/10370001/5268241073831936/image/6466459398832128"}}}},
    {"PutRequest": {"Item": {"ID": {"N": "4"}, "CourseName": {"S": "Educative Bot with Lambda Function Fulfillment using AWS LEX"}, "CourseURL": {"S": "https://www.educative.io/cloudlabs/educative-bot-with-lambda-function-fulfillment-using-aws-lex"}, "ImageURL": {"S": "https://www.educative.io/cdn-cgi/image/format=auto,width=750,quality=75/v2api/collection/10370001/6744845660717056/image/6171933378609152"}}}}
  ]
}'

Lambda functions

We use AWS::Serverless::Function resource to create Lambda function.

Template.yaml

AWSTemplateFormatVersion: '2010-09-09'
Transform: AWS::Serverless-2016-10-31
Description: >
  Lambda functions for CRUD operations
Globals:
  Function:
    Timeout: 3
    Tracing: Active
    Runtime: nodejs18.x
Resources:
  CourseTable:
    Type: AWS::Serverless::SimpleTable
    Properties:
      TableName: Courses
      PrimaryKey:
        Name: ID
        Type: Number
  GetCourses:
    Type: AWS::Serverless::Function
    Properties:
      CodeUri: functions/
      Handler: readCourses.readCourses
      Environment:
        Variables:
          COURSE_TABLE: !Ref CourseTable
      Role:
        !Sub arn:aws:iam::${AWS::AccountId}:role/ClabLambdaRole
  InsertCourse:
    Type: AWS::Serverless::Function
    Properties:
      CodeUri: functions/
      Handler: createCourses.createCourses
      Environment:
        Variables:
          COURSE_TABLE: !Ref CourseTable
      Role:
        !Sub arn:aws:iam::${AWS::AccountId}:role/ClabLambdaRole
  UpdateCourse:
    Type: AWS::Serverless::Function
    Properties:
      CodeUri: functions/
      Handler: updateCourses.updateCourses
      Environment:
        Variables:
          COURSE_TABLE: !Ref CourseTable
      Role:
        !Sub arn:aws:iam::${AWS::AccountId}:role/ClabLambdaRole
  DeleteCourse:
    Type: AWS::Serverless::Function
    Properties:
      CodeUri: functions/
      Handler: deleteCourses.deleteCourses
      Environment:
        Variables:
          COURSE_TABLE: !Ref CourseTable
      Role:
        !Sub arn:aws:iam::${AWS::AccountId}:role/ClabLambdaRole
Outputs:
  DynamoDBTableName:
    Description: "DynamoDB Table Name"
    Value: !Ref CourseTable
  GetCourses:
    Description: "GetCourses Lambda Function ARN"
    Value: !GetAtt GetCourses.Arn
  InsertCourse:
    Description: "InsertCourse Lambda Function ARN"
    Value: !GetAtt InsertCourse.Arn
  UpdateCourse:
    Description: "UpdateCourse Lambda Function ARN"
    Value: !GetAtt UpdateCourse.Arn
  DeleteCourse:
    Description: "DeleteCourse Lambda Function ARN"
    Value: !GetAtt DeleteCourse.Arn

A ClabLambdaRole role (already created) is used for all Lambda functions. It has the following policy:

"Version": "2012-10-17",
          "Statement": [
            {
              "Action": [
                "dynamodb:Scan",
                "dynamodb:Query",
                "dynamodb:GetItem",
                "dynamodb:PutItem",
                "dynamodb:UpdateItem",
                "dynamodb:DeleteItem"
              ],
              "Effect": "Allow",
              "Resource": [
                "arn:aws:dynamodb:us-east-1:*:table/Courses"
              ]
            }
          ]

APIs (via OpenAPI)

We use AWS::Serverless::Api resource to create REST API. An OpenAPI document defines the configurations of the API.

api.yaml

swagger: "2.0"
info:
  version: "1.0"
  title: "Courses"
basePath: "Dev/"
schemes:
- "https"
paths:
  /course:
    get:
      responses: {}
      x-amazon-apigateway-integration:
        credentials:
           Fn::Sub: arn:aws:iam::${AWS::AccountId}:role/ClabAPIRole
        type: "aws_proxy"
        httpMethod: "POST"
        uri:
          Fn::Sub: arn:aws:apigateway:${AWS::Region}:lambda:path/2015-03-31/functions/${GetCourses.Arn}/invocations
        passthroughBehavior: "when_no_match"

    post:
      consumes:
      - "application/json"
      produces:
      - "application/json"
      responses: {}
      x-amazon-apigateway-integration:
        type: "aws_proxy"
        credentials:
           Fn::Sub: arn:aws:iam::${AWS::AccountId}:role/ClabAPIRole
        httpMethod: "POST"
        uri:
          Fn::Sub: arn:aws:apigateway:${AWS::Region}:lambda:path/2015-03-31/functions/${InsertCourse.Arn}/invocations
        responses:
          default:
            statusCode: "200"
        passthroughBehavior: "when_no_match"

  /course/{courseId+}:
    put:
      produces:
      - "application/json"
      parameters:
      - name: "courseId"
        in: "path"
        required: true
        type: "string"
      responses: {}
      x-amazon-apigateway-integration:
        credentials:
           Fn::Sub: arn:aws:iam::${AWS::AccountId}:role/ClabAPIRole
        httpMethod: "POST"
        uri:
          Fn::Sub: arn:aws:apigateway:${AWS::Region}:lambda:path/2015-03-31/functions/${UpdateCourse.Arn}/invocations
        responses:
          default:
            statusCode: "200"
        passthroughBehavior: "when_no_match"
        type: "aws_proxy"

    delete:
      responses: {}
      x-amazon-apigateway-integration:
        credentials:
          Fn::Sub: arn:aws:iam::${AWS::AccountId}:role/ClabAPIRole
        type: "aws_proxy"
        httpMethod: "POST"
        uri:
          Fn::Sub: arn:aws:apigateway:${AWS::Region}:lambda:path/2015-03-31/functions/${DeleteCourse.Arn}/invocations
        passthroughBehavior: "when_no_match"

S3 bucket to store static content

SAM doesn’t provide a resource to create an S3 bucket, we’ll have to use CloudFormation but we can do this also in SAM template as it is compatible. So we add this section to the template that creates sam-web-bucket-${AWS::AccountId} bucket:

```yaml S3Bucket: Type: AWS::S3::Bucket Properties: BucketName: !Sub “sam-web-bucket-\({AWS::AccountId}" PublicAccessBlockConfiguration: BlockPublicAcls: false BlockPublicPolicy: false IgnorePublicAcls: false RestrictPublicBuckets: false WebsiteConfiguration: IndexDocument: index.html S3BucketPolicy: Type: AWS::S3::BucketPolicy DeletionPolicy: Retain Properties: Bucket: !Ref S3Bucket PolicyDocument: Version: '2012-10-17' Statement: - Sid: PublicReadGetObject Effect: Allow Principal: "*" Action: 's3:GetObject' Resource: !Sub "arn:aws:s3:::\){S3Bucket}/*”
